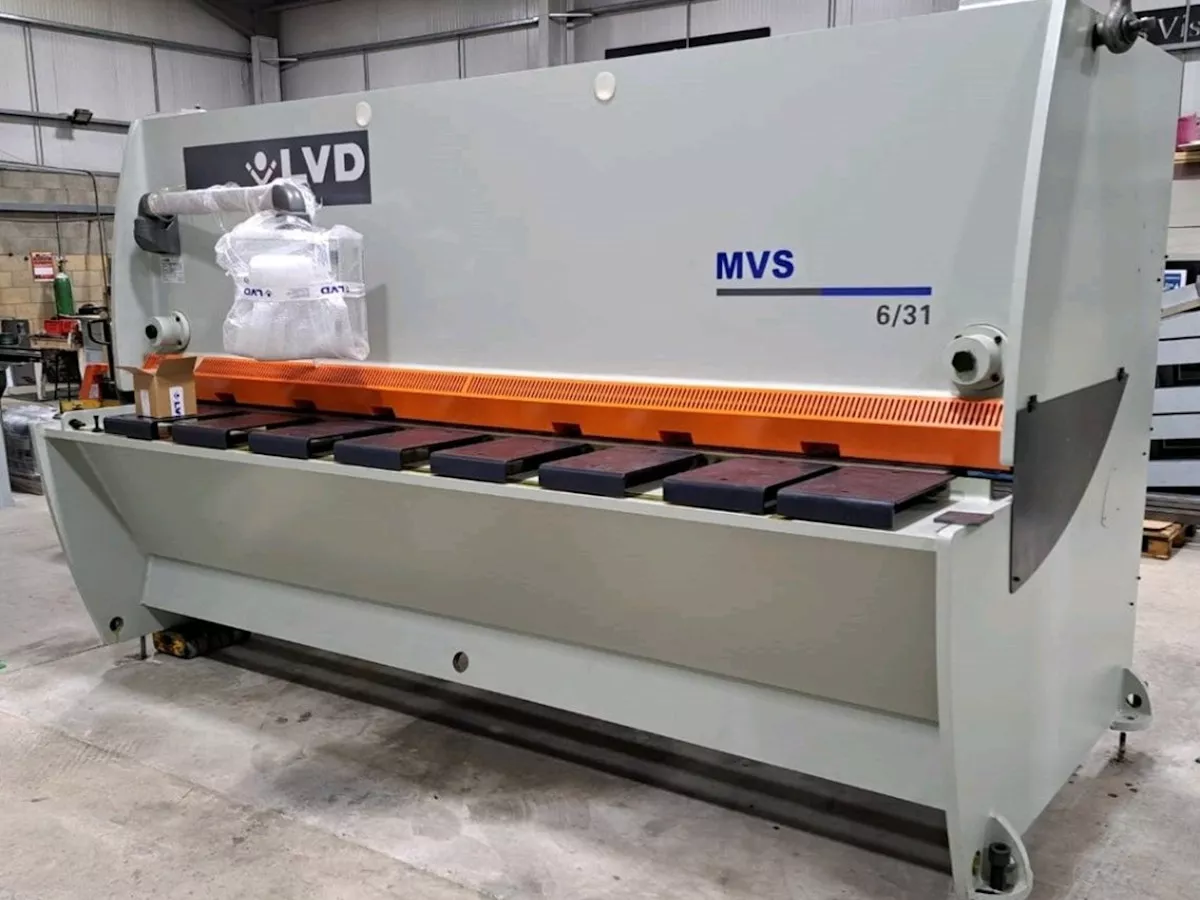

LVD MVS 6/31

Plate shear (New machine)

The LVD MVS shears represent a new era in high-precision sheet metal processing, designed to meet the demanding requirements of modern metalworking. These shears provide outstanding performance and accuracy, a key feature being their automatic angle and blade adjustment, ensuring consistently high-quality cuts while significantly reducing the time spent on manual adjustments.

Another cornerstone of these shears is their advanced touchscreen control. This intuitive interface simplifies parameter settings, allowing operators to control the machine with minimal effort and maximum efficiency. Whether for simple or complex cutting tasks, the touchscreen control makes operating the LVD MVS shears a seamless and user-friendly experience.

In addition to technological sophistication, the LVD MVS shears are characterized by their robust construction, ensuring longevity and sustained performance. This reliability, coupled with precision and ease of use, makes them a valuable investment for any workshop specializing in sheet metal processing.

Overall, the LVD MVS shears offer an optimal combination of precision, performance, and user-friendliness, making them an essential tool for modern sheet metal processing businesses. With their advanced technology and design, they set new standards in the metalworking industry.

Product code92-000526
Manufacturer LVD
ModelMVS 6/31
TypePlate shear
ConditionNew machine
ControlSonstige LVD
Year of manuf.2024
Availability:by arrangement



Technical Data

Type 06/40
Cutting length 3,100 mm
Max. shearing capacity (steel 450 N/mmยฒ) 6,35 mm
Range backgauge 1000 mm
Min./max. no. of strokes/min. 12 / 30
Min./max. cutting angle 0,5ยฐ - 2,0ยฐ
Min./max. blade clearance 0.05 / 0.8 mm
Number of holddowns 16
Motor power (380 V/50 Hz) 7.5 kW
Approximate weight 6,500 kg
