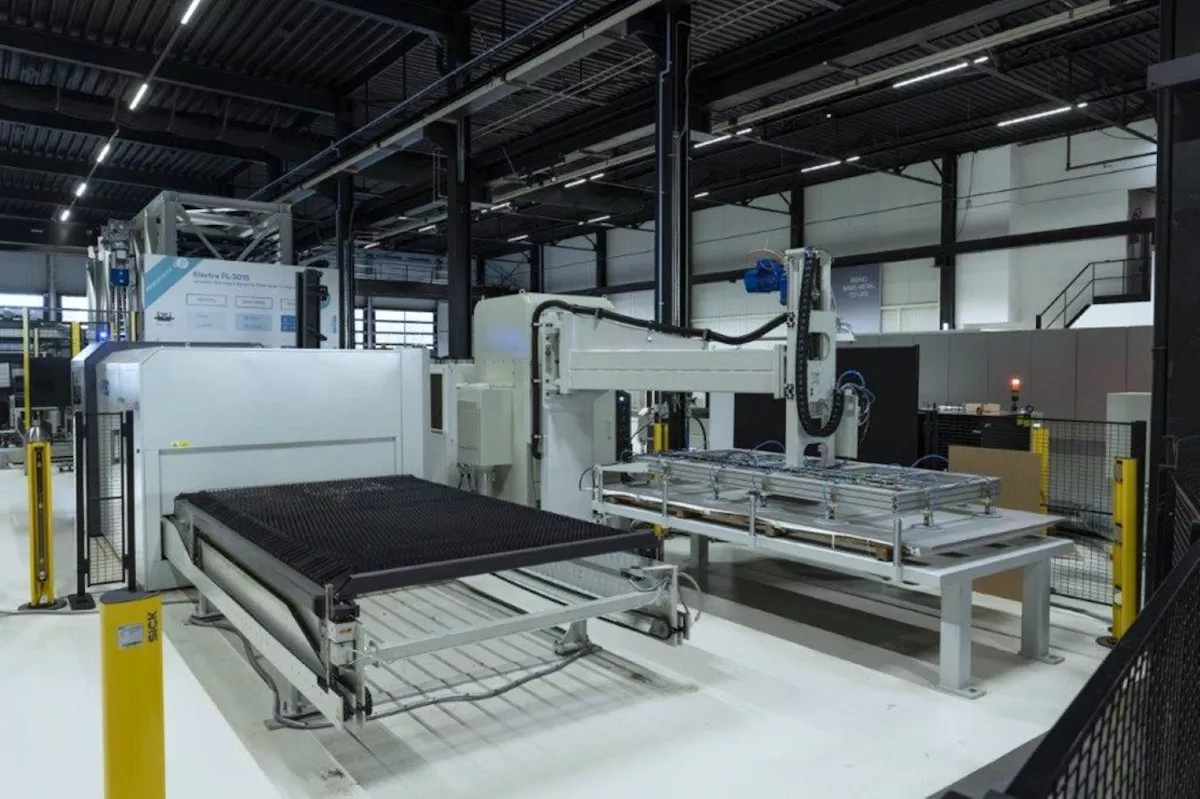

LVD YSD LaserONE

Laser cutting machine (New machine)

The YSD LaserONE offers pure laser cutting solution, providing an easy entry into the world of fiber laser cutting. This machine has everything you need to leverage the benefits of fiber laser technology without the expensive extra features. Developed, manufactured, and maintained by LVD, this machine is designed for reliable performance at low operating costs.

With laser sources of 3 and 6 kW, the YSD LaserONE delivers powerful cutting performance for a variety of applications. The NC-focus cutting head enables precise and efficient cuts across different material thicknesses. The maximum sheet size of 3050 x 1525 mm provides ample space for processing various workpieces and sheet formats.

Furthermore, the YSD LaserONE is Industry 4.0-ready, supporting integration into modern manufacturing environments according to Industry 4.0 standards. This enables seamless connectivity and optimized production workflows through advanced data analysis and control. Overall, the YSD LaserONE offers a reliable and efficient solution for precise laser cutting across a variety of applications and environments.

Product code92-000515
Manufacturer LVD
ModelYSD LaserONE
TypeLaser cutting machine
ConditionNew machine
ControlSiemens
Year of manuf.2024
Availability:by arrangement



Technical Data

Type LaserOne
Smart factory Industry 4.0-capable
Control 15" touchscreen, Touch-L, intuitive user interface
Software package CADMAN-L programming software for laser cutting, CADMAN-SDI drawing import, CADMAN-JOB real-time data acquisition, order tracking and ERP connection as well as Touch-i4 tablet for displaying the KPI history and for sorting and validating parts
Maximum sheet size 3,050 x 1,525 mm
X-axis travel 3,185 mm
Y-axis travel 1,570 mm
Z-axis travel 100 mm
Maximum sheet weight 750 kg
Maximum positioning speed X/Y 100 m/min
Maximum positioning speed Z 15 m/min
Smallest programmable increment 0.01 mm
Slag removal Slag drawers
Pallet changer Fully automatic
Type MAX Photonics
Laser power 6,000 Watt
Power stability <3%
Power range 400-6,000 watts
Wavelength 108ยฑ5 nm
Type Sinumerik 840Dsl / B&R APC 910
Operating system Windows
CNC memory capacity 8 GB RAM / 60 GB SSD
Screen 15" LCD touchscreen
Network card 1 Gbit/sec RJ45 connection
USB interface 2 x USB 3.0 on the front panel
Length 10,500 mm
Width 5,900 mm
Height 2,035 mm
Weight 6,200 kg

Equipment

  • Pallet changer
  • Fume exchanger
  • Fibre laser
