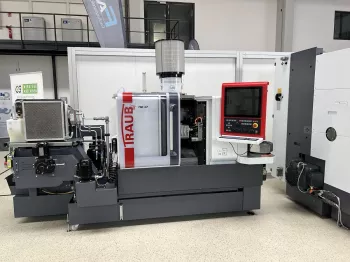

TRAUB TNL 12

CNC swiss type lathe (DEMO MACHINE)

The Traub TNL 12, an automatic long lathe, stands as a sophisticated solution tailored for the precise and complex machining of turned components. Merging the latest in technological innovation with a space-efficient design, it's perfectly suited for high-efficiency production in workshops regardless of their size.

One of the standout characteristics of the TNL 12 is its exceptional precision in machining tasks. It's equipped with state-of-the-art control systems, enabling the production of components with very narrow tolerances, a vital aspect for sectors such as aerospace, medical technology, and precision engineering. Featuring multi-axis capabilities, it allows for concurrent machining operations, thereby considerably decreasing cycle times.

The machine's adaptability is another significant attribute. The TNL 12 can be adapted to handle various materials and machining operations, showcasing its versatility. It also includes automation options, enhancing productivity and optimizing production efficiency.

User-friendliness is a further key benefit of the Traub TNL 12. Its intuitive user interface simplifies the programming and tracking of machining processes, minimizing the learning period for operators and boosting overall operational efficiency.

In conclusion, the Traub TNL 12 automatic long lathe represents a top-tier selection for firms that prioritize accuracy, adaptability, and production efficiency. With its innovative technology and ease of operation, the machine redefines industry benchmarks.

Product code92-000437
Manufacturer TRAUB
ModelTNL 12
TypeCNC swiss type lathe
ConditionDEMO MACHINE
ControlTraub TX8i-s V8
Year of manuf.2021
Availability:immediately



Technical Data

Spindel capacity 13 mm
Speed 12,000 U/min
Power 3.5 / 4,4 kW
Spindel capacity 13 mm
Speed 12,000 U/min
Power 3.5 / 4,4 kW
Slideway X 152 mm
Slideway Z 330 mm
Stations 4
Torqe max. 12,000 min-1
Slideway X 330 mm
Slideway Z 152 mm
Internal cooling stations 1+4 120 bar
Stations 7
Torque max. 12,000 min-1
Sliedeway X 203 mm
Internal cooling stations 1+4+5 120 bar
Quantity Revolver 2
Stations 2 x 6
Speed max. 12,000 min-1
Power 1.0 / 2.1 kW
Slideway X 38 mm
Slideway Y 25.4 mm
Slideway Z 51 mm
Rapid traverse X/Y/Z 25 m/min
Weight 3,400 kg
Machine dimensions 1,900 x 1,100 x 1,600 mm

Equipment

  • Y-Axis
  • Subspindel
  • driven tools
  • Chip conveyor
  • Coolant supply
  • Linear scale
  • finished parts gripper
  • high pressure coolant
  • Fume exchanger
