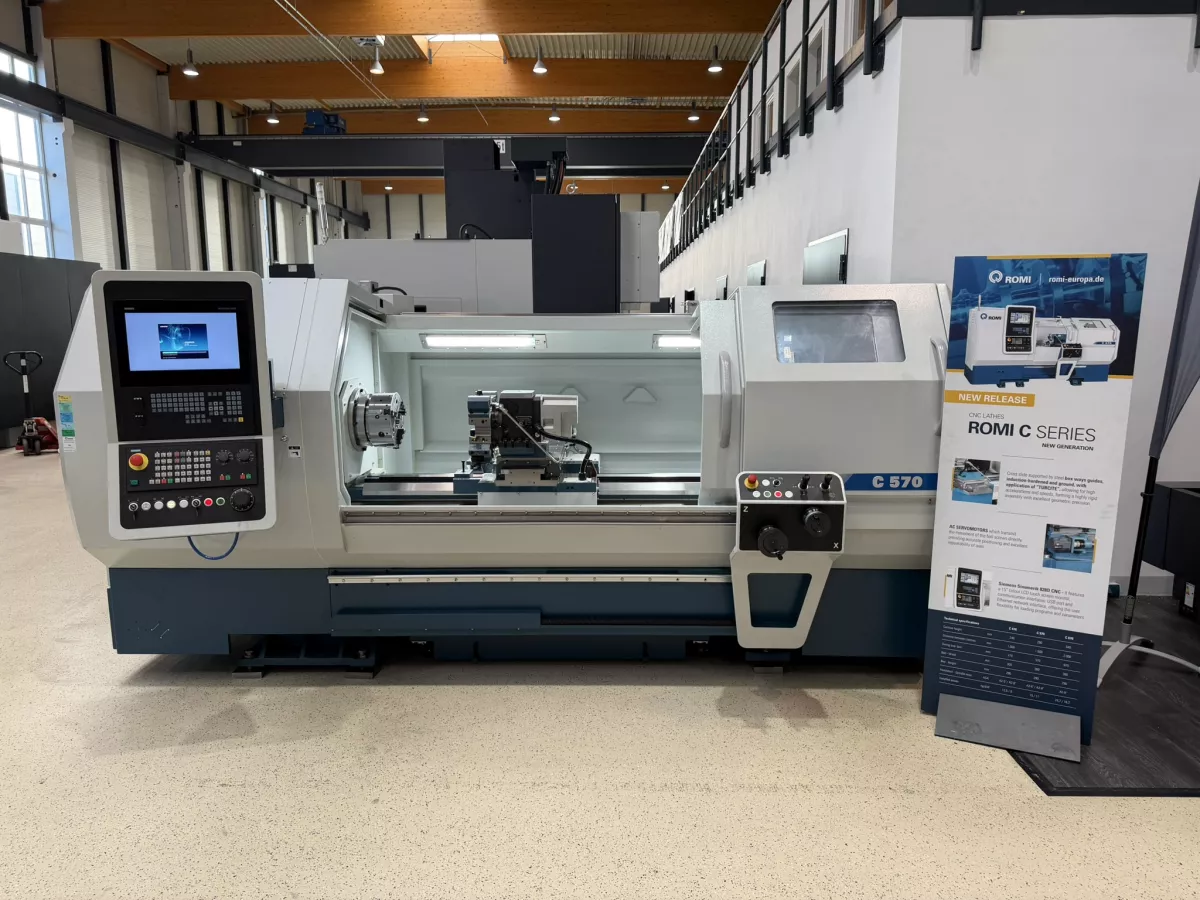

ROMI C570

Cycle lathe (New machine)

The ROMI C 570 cycle lathe offers the highest quality and precision at an unbeatable price-performance ratio. A warranty of up to 3 years and an extensive service network speak for themselves.

Equipped with the powerful SIEMENS 828D control, the machine offers the highest level of programming and operating comfort. Thanks to the integrated handwheels, the ROMI C 570 is the ideal machine for the economical processing of individual parts and small series. Since cycle-controlled machines are often used in the same company for many years, ROMI places great value on using the highest quality components. This not only ensures long-term and reliable operational readiness, but also a long-term supply of spare parts.

Product code92-000541
Manufacturer ROMI
ModelC570
TypeCycle lathe
ConditionNew machine
ControlSiemens 828 D
Year of manuf.2024
Availability:immediately



Technical Data

Speed 2,200 rpm
Power 11 kW
Chuck diameter 260 mm
Spindle bearing 80 mm
Spindel nose A2-8''
Center distance 1,500 mm
Center hight 290 mm
Diameter over bed 510 mm
Technology Draged
Centering device MK-4
Chipmanagement Chip tray
Coolant supply Coolant pump 7 bar

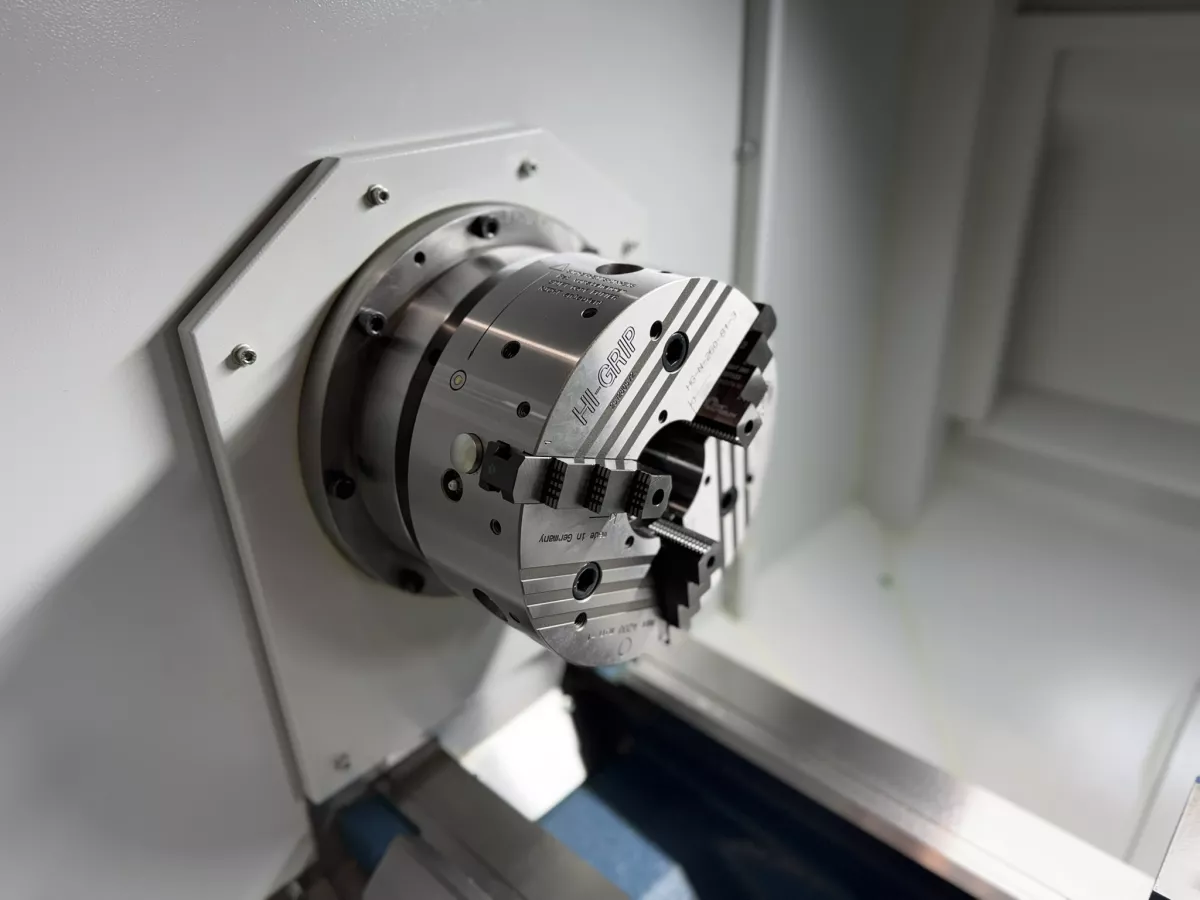

Clamping device SMW Chuck D=260 mm

Equipment

  • Coolant supply
  • Tailstock (manual)
  • Collet chuck incl.
  • Elect. handwheel
  • incl. clamping device
