    • EMAG WPG7

    Cylindrical grinding machine (DEMO MACHINE)


    Product code92-000578
    Manufacturer EMAG
    ModelWPG7
    TypeCylindrical grinding machine
    ConditionDEMO MACHINE

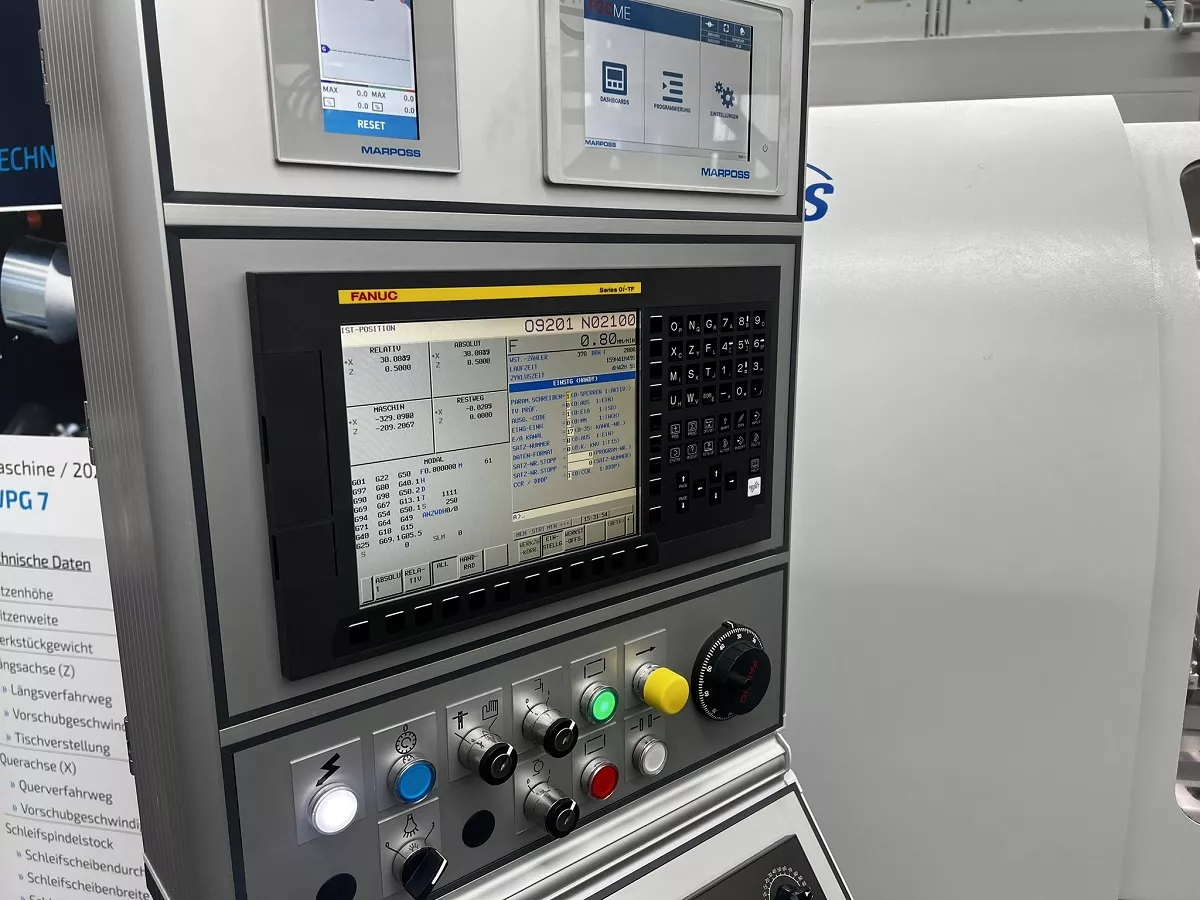

    ControlFanuc 0i
    Year of manuf.2024
    Availability:immediately


    ...
    René Schmidt

    Technical datasheet
    Share

    Technical Data

    Grinding length 250 mm
    Center height 100 mm
    Workpiece weight 30 kg
    Z axis 350 mm
    Table adjustment 8° degrees
    X-axis 190 mm
    Grinding wheel diameter max. 500 mm
    Grinding wheel width max. 80 mm
    Grinding wheel bore 127 (203)
    Grinding wheel motor power 5.5 kW
    Circumferential speed 50 m/s
    Protective cover for grinding wheel D500 x 80mm
    Speed 1 - 2,000 1/min
    Workpiece spindle holder MK4
    Tailstock quill mount MK3
    Stroke length tailstock quill 30 mm
    Cylinder fine adjustment range ± 0.04
    Paper belt filter system
    Flush gun
    mechanical vapor extraction

    Equipment

    • Paperbeltfilter
    • Oilmistextraction
    • Tailstock (manual)
