Junker NUMERIKA GH 500

  1. Machines
  2. Grinding machines
  3. Junker NUMERIKA GH 500

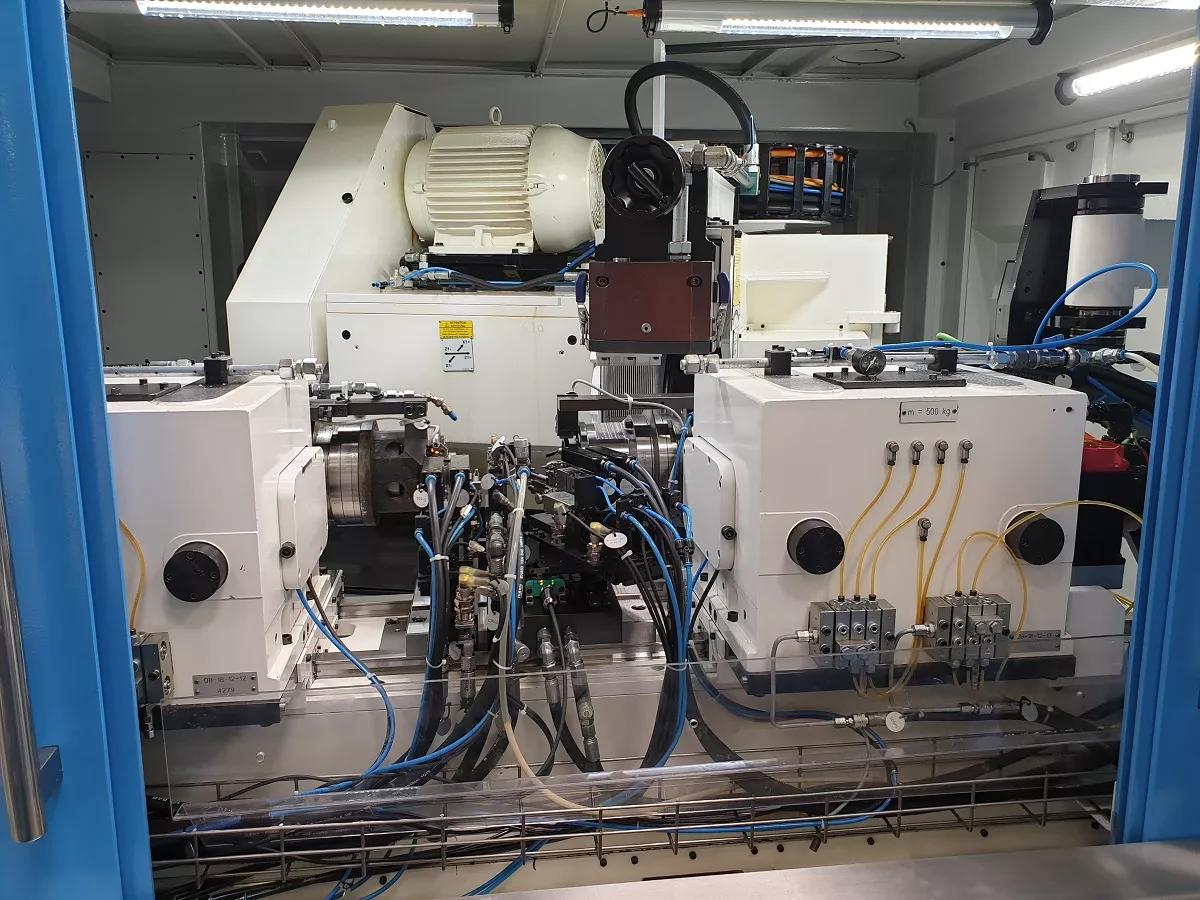

  • Junker NUMERIKA GH 500 - Year of manuf.: 2022 Picture-1
  • Junker NUMERIKA GH 500 - Year of manuf.: 2022 Picture-2
  • Junker NUMERIKA GH 500 - Year of manuf.: 2022 Picture-3
  • Junker NUMERIKA GH 500 - Year of manuf.: 2022 Picture-4
  • Junker NUMERIKA GH 500 - Year of manuf.: 2022 Picture-5
  • Junker NUMERIKA GH 500 - Year of manuf.: 2022 Picture-6

    • Junker NUMERIKA GH 500

    Cylindrical grinding machine (DEMO MACHINE)


    Product code92-000443
    Manufacturer Junker
    ModelNUMERIKA GH 500
    TypeCylindrical grinding machine
    ConditionDEMO MACHINE
    ControlFanuc 0i TD
    Year of manuf.2022
    Availability:immediately


    ...
    René Schmidt

    Technical datasheet
    Share

    Technical Data

    Swing diameter 450 mm
    Clamping length 550 mm
    Grinding length 500 mm
    Center height 230 mm
    Workpiece weight max. 130 kg
    Grinding wheel diameter max. 760 mm
    Grinding wheel width 150 mm
    Grinding wheel motor power 18 (30) kW
    Speed 500 rpm
    Workpiece spindle holder MK 5
    Tailstock quill mount MK 5
    Stroke length tailstock quill 60 mm
    Taper correction +/- 0.15
    Loading and unloading Manual or automatic
    Internal gantry loader Prepared
    Robot interface Prepared
    Axial adjustment of the workpiece headstock Automatic
    Axial adjustment tailstock Automatic
    Taper adjustment Automatic
    Workpiece measurement diameter measuring system
    Positioning Measuring longitudinal positioner
    Other features bezel

    Equipment

    • Coolant supply
    • Linear scale
    • Automation / Roboter
    • B-axis
