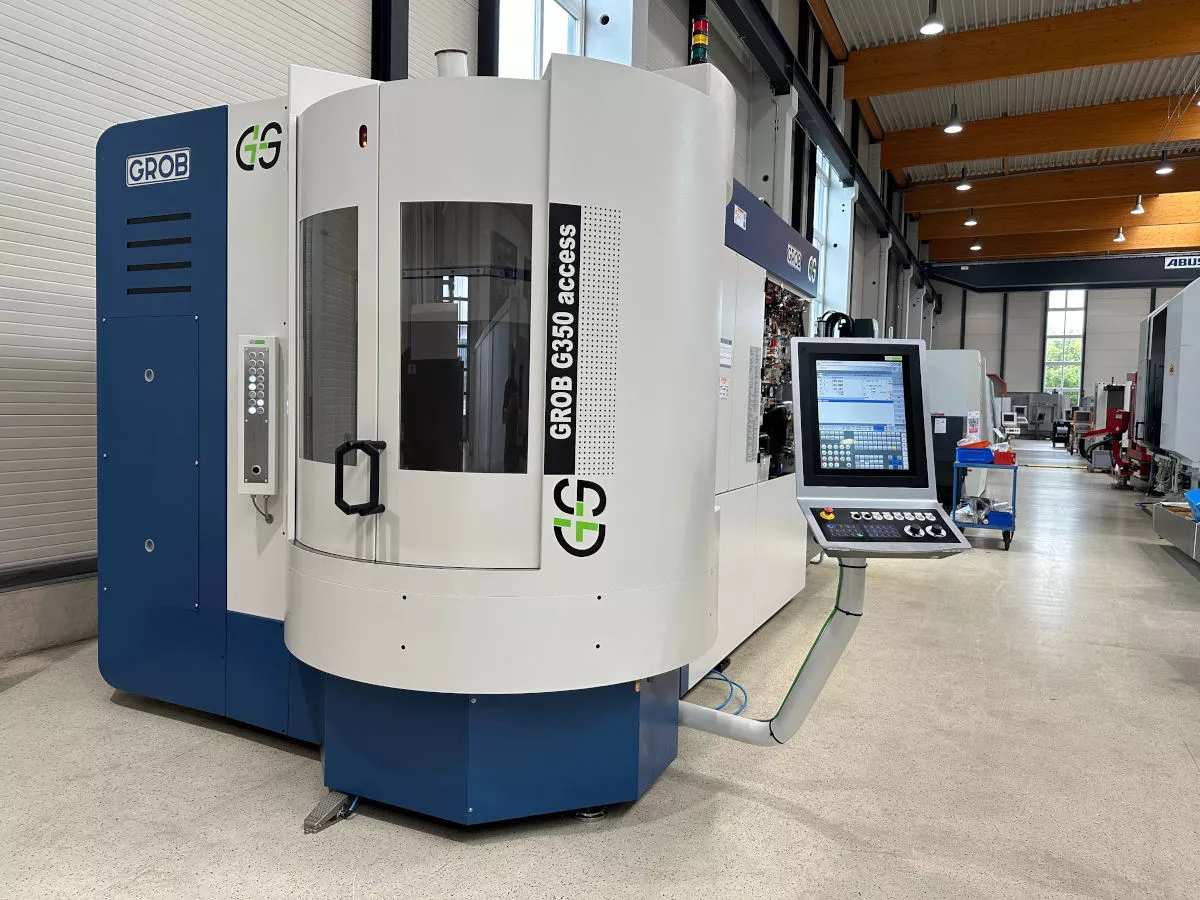

GROB G350a

5-Axis machining center (Used machine)

5-axis machining centre from the German manufacturer Grob.
The G350a with pallet changer and swivelling rotary table - the perfect solution for your 5-axis machining with longer set-up times.

Thanks to the pallet changer, you can set up your complex 5-axis parts in parallel to machining.

Highlighs:
Siemens 840 Dsl - Grob4Pilot
Direct measuring systems
Pallet changer
Internal coolant supply, 40 bar
Powerful HSK63 direct drive spindle with 206 Nm
Swivelling rotary table
direct available

Do you need more information or are you interested in a viewing?

Product code89-001352
Manufacturer GROB
ModelG350a
Type5-Axis machining center
ConditionUsed machine
ControlSiemens 840 Dsl
Year of manuf.2022
Availability:immediately



Technical Data

Control system Siemens 840 Dsl - GROB4Pilot
Traverse path X/Y/Z 600/770/805 mm
Technology Motorised spindle
Speed 16,000 rpm
Max. power approx. 32 kW
Max. torque approx. 206 Nm
Tool holder HSK-63
A-axis -185ยฐ/+45ยฐ
C-axis 360ยฐ
Measuring systems Direct
Clamping surface 400 x400 mm
Max. table load approx. 300 kg
Workpiece clamping system 4x fluid connection
Technology magazine
Number of stations 50
Max. tool length 365 mm
Measuring systems Direct in all axes
Chip removal Chip conveyor
Coolant supply IKZ system, 40 bar
Workpiece measurement Infrared measuring probe
Tool breakage monitoring Electromechanical
Automation Pallet changer with set-up stations

Equipment

  • Chip conveyor
  • Coolant supply
  • Linear scale
  • Elect. handwheel
  • Workpiece measurement
  • Tool measurement
  • high pressure coolant
  • Pallet changer
