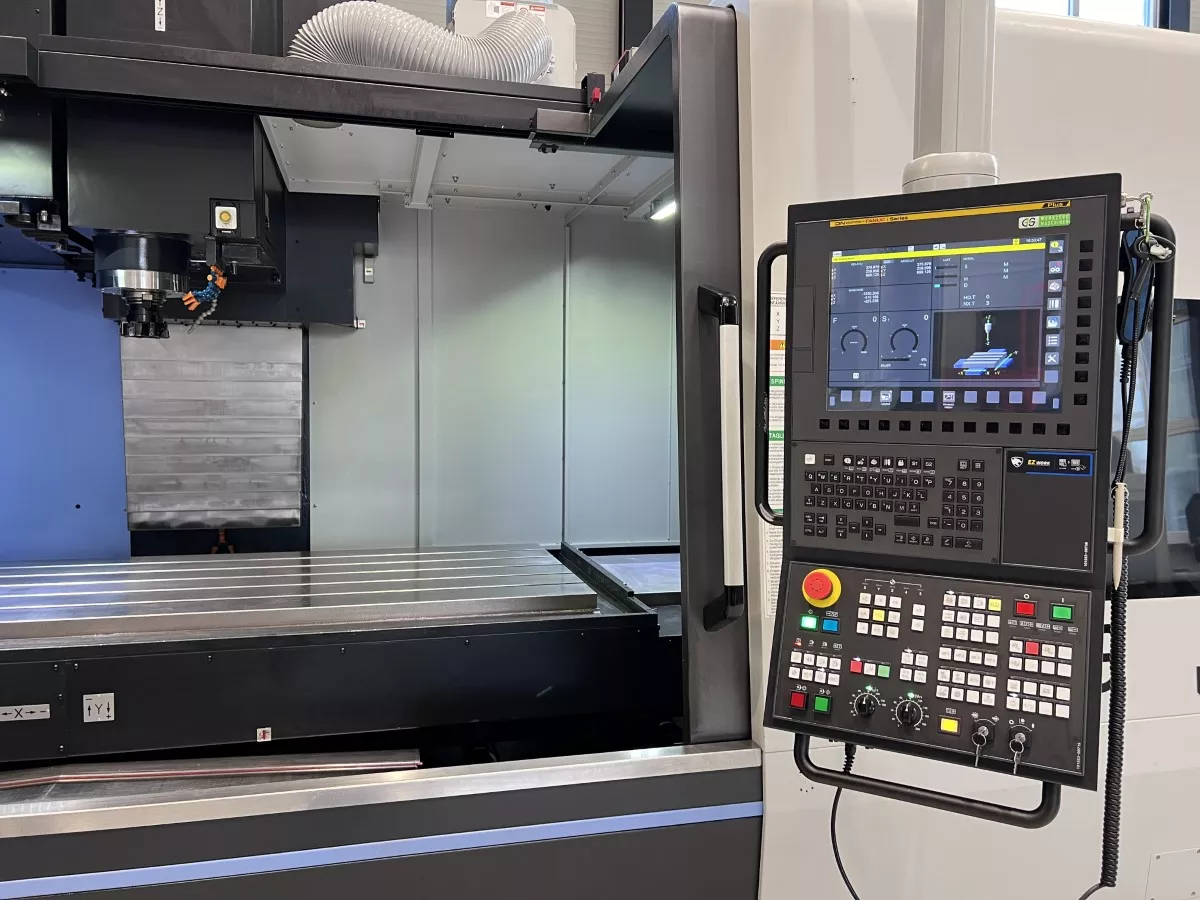

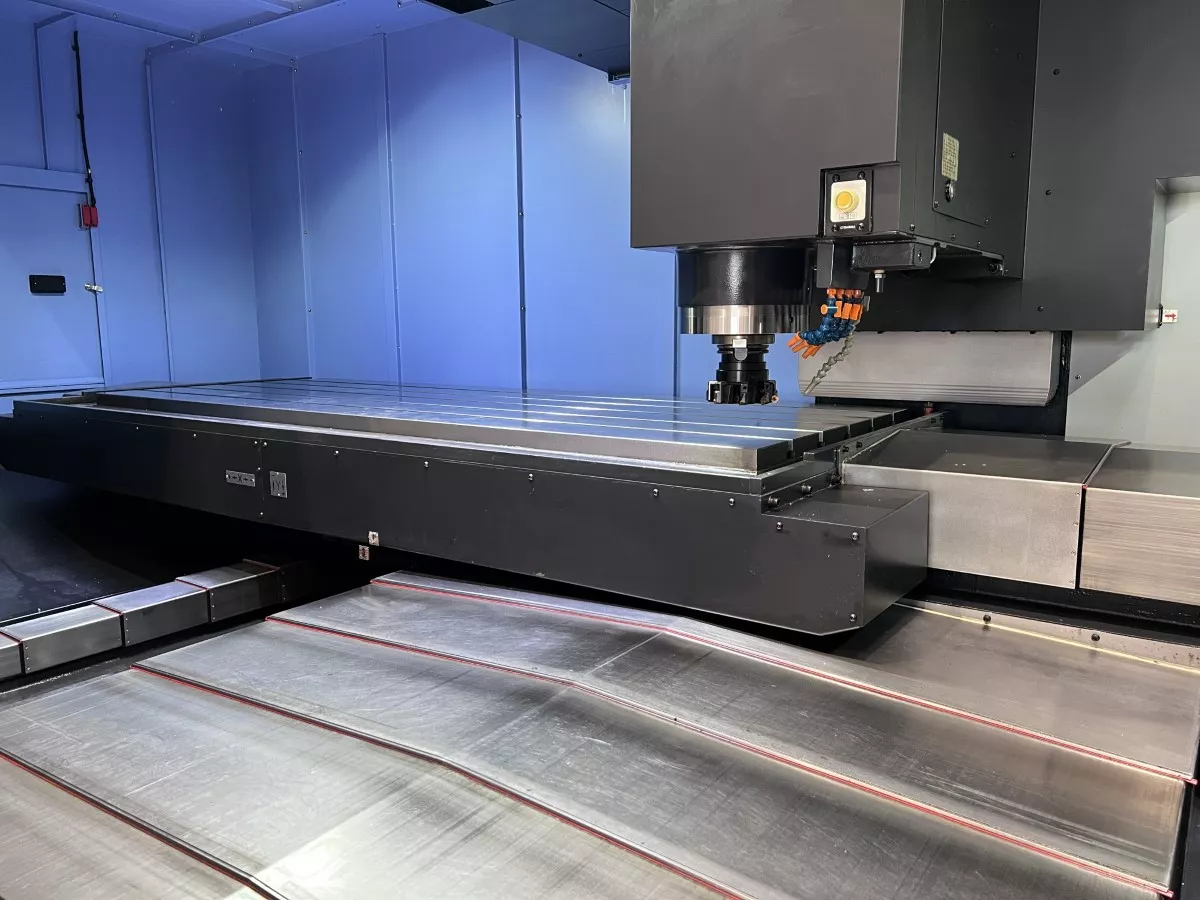

  • Doosan Mynx 9500 - Year of manuf.: 2022 Picture-1
  • Doosan Mynx 9500 - Year of manuf.: 2022 Picture-2
  • Doosan Mynx 9500 - Year of manuf.: 2022 Picture-3
  • Doosan Mynx 9500 - Year of manuf.: 2022 Picture-4
  • Doosan Mynx 9500 - Year of manuf.: 2022 Picture-5
  • Doosan Mynx 9500 - Year of manuf.: 2022 Picture-6
  • Doosan Mynx 9500 - Year of manuf.: 2022 Picture-7
  • Doosan Mynx 9500 - Year of manuf.: 2022 Picture-8
  • Doosan Mynx 9500 - Year of manuf.: 2022 Picture-9

    • Doosan Mynx 9500

    3-axis machining center (Used machine)


    Product code89-001391
    Manufacturer Doosan
    ModelMynx 9500
    Type3-axis machining center
    ConditionUsed machine
    ControlFanuc 0i-MF
    Year of manuf.2022
    Availability:immediately


    ...
    René Schmidt

    Technical datasheet
    Share

    Technical Data

    Technology Gearspindle, 2 stages
    Speed (max.) 6.000 rpm
    Power (max.) 30 kW
    Torque (max.) 617 Nm
    Taper SK50
    Clampingsurface 2.500 x 950 mm
    Tableloading (max.) 3.500 kg
    Toolmagazine 40 Stations
    Rapid travers in X/Y/Z 16 m/min
    Movement X/Y/Z 2500/950/850 mm
    Chipmanagement Chip conveyor with Oilskimmer
    Coolingmanagement Internal cooling unit with Cyclonfilter and high-pressure, 20 bar
    Oilmistseparation Mechanical extraction, Dormatec AF-30P
    Setup operations Electronic handwheel
    Preparation 4th-Axis Cable + plug
    Further Accessory Spindle chiller, Trafo

    Equipment

    • Chip conveyor
    • Elect. handwheel
    • high pressure coolant
    • Fume exchanger
